We’re overhauling Dgraph’s docs to make them clearer and more approachable. If you notice any issues during this transition or have suggestions, please let us know.
Dgraph Bulk Loader serves a similar purpose to the Dgraph Live Loader, but can only be used to load data into a new cluster. It can’t be run on an existing Dgraph cluster. Dgraph Bulk Loader is considerably faster than the Dgraph Live Loader and is the recommended way to perform the initial import of large datasets into Dgraph. Only one or more Dgraph Zeros should be running for bulk loading. Dgraph Alphas are started later. You can read the technical details about the Bulk Loader on the blog.
Don’t use the Bulk Loader once the Dgraph cluster is up and running. Use it to import your existing data to a new cluster.
It is crucial to tune the Bulk Loader’s flags to get good performance. See the next section for details.

​
Settings

Bulk Loader only accepts data in the RDF N-Quad/Triple or JSON formats. Data can be raw or compressed with gzip.
$ dgraph bulk --help # To see the available flags.

# Read RDFs or JSON from the passed file.
$ dgraph bulk -f <path-to-gzipped-RDF-or-JSON-file> ...

# Read multiple RDFs or JSON from the passed path.
$ dgraph bulk -f <./path-to-gzipped-RDF-or-JSON-files> ...

# Read multiple files strictly by name.
$ dgraph bulk -f <file1.rdf, file2.rdf> ...
  • Reduce shards: Before running the bulk load, you need to decide how many Alpha groups are running when the cluster starts. The number of Alpha groups is the same number of reduce shards you set with the --reduce_shards flag. For example, if your cluster has 3 Alpha with 3 replicas per group, then there is 1 group and --reduce_shards should be set to 1. If your cluster has 6 Alphas with 3 replicas per group, then there are 2 groups and --reduce_shards should be set to 2.
  • Map shards: The --map_shards option must be set to at least what’s set for --reduce_shards. A higher number helps the Bulk Loader evenly distribute predicates between the reduce shards.
For example:
dgraph bulk -f goldendata.rdf.gz -s goldendata.schema --map_shards=4 --reduce_shards=2 --http localhost:8000 --zero=localhost:5080

{
  "DataFiles": "goldendata.rdf.gz",
  "DataFormat": "",
  "SchemaFile": "goldendata.schema",
  "DgraphsDir": "out",
  "TmpDir": "tmp",
  "NumGoroutines": 4,
  "MapBufSize": 67108864,
  "ExpandEdges": true,
  "SkipMapPhase": false,
  "CleanupTmp": true,
  "NumShufflers": 1,
  "Version": false,
  "StoreXids": false,
  "ZeroAddr": "localhost:5080",
  "HttpAddr": "localhost:8000",
  "IgnoreErrors": false,
  "MapShards": 4,
  "ReduceShards": 2
}
The bulk loader needs to open many files at once. This number depends on the size of the data set loaded,
the map file output size, and the level of indexing. 100,000 is adequate for most data set sizes.
See `man ulimit` for details of how to change the limit.

Current max open files limit: 1024
MAP 01s rdf_count:176.0 rdf_speed:174.4/sec edge_count:564.0 edge_speed:558.8/sec
MAP 02s rdf_count:399.0 rdf_speed:198.5/sec edge_count:1.291k edge_speed:642.4/sec
MAP 03s rdf_count:666.0 rdf_speed:221.3/sec edge_count:2.164k edge_speed:718.9/sec
MAP 04s rdf_count:952.0 rdf_speed:237.4/sec edge_count:3.014k edge_speed:751.5/sec
MAP 05s rdf_count:1.327k rdf_speed:264.8/sec edge_count:4.243k edge_speed:846.7/sec
MAP 06s rdf_count:1.774k rdf_speed:295.1/sec edge_count:5.720k edge_speed:951.5/sec
MAP 07s rdf_count:2.375k rdf_speed:338.7/sec edge_count:7.607k edge_speed:1.085k/sec
MAP 08s rdf_count:3.697k rdf_speed:461.4/sec edge_count:11.89k edge_speed:1.484k/sec
MAP 09s rdf_count:71.98k rdf_speed:7.987k/sec edge_count:225.4k edge_speed:25.01k/sec
MAP 10s rdf_count:354.8k rdf_speed:35.44k/sec edge_count:1.132M edge_speed:113.1k/sec
MAP 11s rdf_count:610.5k rdf_speed:55.39k/sec edge_count:1.985M edge_speed:180.1k/sec
MAP 12s rdf_count:883.9k rdf_speed:73.52k/sec edge_count:2.907M edge_speed:241.8k/sec
MAP 13s rdf_count:1.108M rdf_speed:85.10k/sec edge_count:3.653M edge_speed:280.5k/sec
MAP 14s rdf_count:1.121M rdf_speed:79.93k/sec edge_count:3.695M edge_speed:263.5k/sec
MAP 15s rdf_count:1.121M rdf_speed:74.61k/sec edge_count:3.695M edge_speed:246.0k/sec
REDUCE 16s [1.69%] edge_count:62.61k edge_speed:62.61k/sec plist_count:29.98k plist_speed:29.98k/sec
REDUCE 17s [18.43%] edge_count:681.2k edge_speed:651.7k/sec plist_count:328.1k plist_speed:313.9k/sec
REDUCE 18s [33.28%] edge_count:1.230M edge_speed:601.1k/sec plist_count:678.9k plist_speed:331.8k/sec
REDUCE 19s [45.70%] edge_count:1.689M edge_speed:554.4k/sec plist_count:905.9k plist_speed:297.4k/sec
REDUCE 20s [60.94%] edge_count:2.252M edge_speed:556.5k/sec plist_count:1.278M plist_speed:315.9k/sec
REDUCE 21s [93.21%] edge_count:3.444M edge_speed:681.5k/sec plist_count:1.555M plist_speed:307.7k/sec
REDUCE 22s [100.00%] edge_count:3.695M edge_speed:610.4k/sec plist_count:1.778M plist_speed:293.8k/sec
REDUCE 22s [100.00%] edge_count:3.695M edge_speed:584.4k/sec plist_count:1.778M plist_speed:281.3k/sec
Total: 22s
The output is generated in the out directory by default. Here’s the bulk load output from the preceding example:
tree ./out

./out
├── 0
│   └── p
│       ├── 000000.vlog
│       ├── 000002.sst
│       └── MANIFEST
└── 1
    └── p
        ├── 000000.vlog
        ├── 000002.sst
        └── MANIFEST

4 directories, 6 files
Because --reduce_shards was set to 2, two sets of p directories are generated:
  • the ./out/0 folder
  • the ./out/1 folder
Once the output is created, the files must be copied to all the servers that run Dgraph Alphas:
  • Each replica of the first group (Alpha1, Alpha2, Alpha3) should have a copy of ./out/0/p
  • Each replica of the second group (Alpha4, Alpha5, Alpha6) should have a copy of ./out/1/p, and so on.
Each Dgraph Alpha must have a copy of the group’s p directory output.

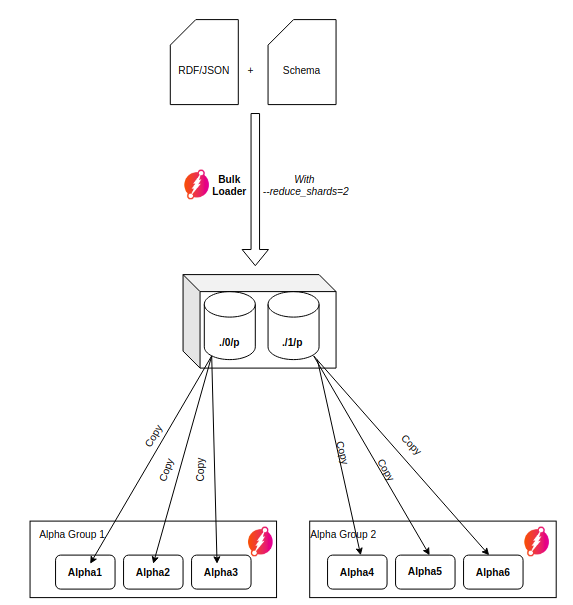

Bulk Loader diagram

​
Other Bulk Loader options

You can further configure Bulk Loader using the following options:
  • --schema, -s: set the location of the schema file.
  • --graphql_schema, -g (optional): set the location of the GraphQL schema file.
  • --badger superflag’s compression option: Configure the compression of data on disk. By default, the Snappy compression format is used, but you can also use Zstandard compression. Or, you can choose no compression to minimize CPU usage. To learn more, see Data Compression on Disk.
  • --new_uids: (default: false): Assign new UIDs instead of using the existing UIDs in data files. This is useful to avoid overriding the data in a DB already in operation.
  • -f, --files: Location of *.rdf(.gz) or *.json(.gz) files to load. It can load multiple files in a given path. If the path is a directory, then all files ending in .rdf, .rdf.gz, .json, and .json.gz are loaded.
  • --format (optional): Specify file format (rdf or json) instead of getting it from filenames. This is useful if you need to define a strict format manually.
  • --store_xids: Generate a xid edge for each node. It stores the XIDs (The identifier / Blank-nodes) in an attribute named xid in the entity itself.
  • --xidmap (default: disabled. Need a path): Store xid to uid mapping to a directory. Dgraph saves all identifiers used in the load for later use in other data import operations. The mapping is saved in the path you provide and you must indicate that same path in the next load. It is recommended to use this flag if you have full control over your identifiers (Blank-nodes). Because the identifier is mapped to a specific UID.
  • --vault superflag (and its options): specify the Vault server address, role id, secret id, and field that contains the encryption key required to decrypt the encrypted export.

​
Load from S3

To bulk load from Amazon S3, you must have either IAM or the following AWS credentials set via environment variables:
Environment VariableDescription
AWS_ACCESS_KEY_ID or AWS_ACCESS_KEYAWS access key with permissions to write to the destination bucket.
AWS_SECRET_ACCESS_KEY or AWS_SECRET_KEYAWS access key with permissions to write to the destination bucket.

​
IAM setup

In AWS, you can accomplish this by doing the following:
  1. Create an IAM Role with an IAM Policy that grants access to the S3 bucket.
  2. Depending on whether you want to grant access to an EC2 instance, or to a pod running on EKS, you can do one of these options:
Once your setup is ready, you can execute the bulk load from S3:
dgraph bulk -f s3:///bucket-name/directory-with-rdf -s s3:///bucket-name/directory-with-rdf/schema.txt

​
Load from MinIO

To bulk load from MinIO, you must have the following MinIO credentials set via environment variables:
Environment VariableDescription
MINIO_ACCESS_KEYMinIO access key with permissions to write to the destination bucket.
MINIO_SECRET_KEYMinIO secret key with permissions to write to the destination bucket.
Once your setup is ready, you can execute the bulk load from MinIO:
dgraph bulk -f minio://minio-server:port/bucket-name/directory-with-rdf -s minio://minio-server:port/bucket-name/directory-with-rdf/schema.txt

​
How to properly bulk load

Starting from Dgraph v20.03.7, depending on your dataset size, you can follow one of the following ways to use Bulk Loader and initialize your new cluster. The following procedure is particularly relevant for Clusters that have --replicas flag greater than 1

​
For small datasets

In case your dataset is small (a few gigabytes) it would be convenient to start by initializing just one Alpha node and then let the snapshot be streamed among the other Alpha replicas. You can follow these steps:
  1. Run Bulk Loader only on one server
  2. Once the p directory has been created by the Bulk Loader, then start only the first Alpha replica
  3. Wait for 1 minute to ensure that a snapshot has been taken by the first Alpha node replica. You can confirm that a snapshot has been taken by looking for the following message”:
    I1227 13:12:24.202196   14691 draft.go:571] Creating snapshot at index: 30. ReadTs: 4.
  4. After confirming that the snapshot has been taken, you can start the other Alpha node replicas (number of Alpha nodes must be equal to the --replicas flag value set in the Zero nodes). Now the Alpha node (the one started in step 2) logs similar messages:
    I1227 13:18:16.154674   16779 snapshot.go:246] Streaming done. Sent 1093470 entries. Waiting for ACK...
I1227 13:18:17.126494   16779 snapshot.go:251] Received ACK with done: true
I1227 13:18:17.126514   16779 snapshot.go:292] Stream snapshot: OK
    These messages indicate that all replica nodes are now using the same snapshot. Thus, all your data is correctly in sync across the cluster. Also, the other Alpha nodes print (in their logs) something similar to:
    I1227 13:18:17.126621    1720 draft.go:567] Skipping snapshot at 28, because found one at 28

​
For bigger datasets

When your dataset is pretty big (larger than 10 GB) it is faster that you just copy the generated p directory (by the Bulk Loader) among all the Alphas nodes. You can follow these steps:
  1. Run Bulk Loader only on one server
  2. Copy (or use rsync) the p directory to the other servers (the servers you are using to start the other Alpha nodes)
  3. Now, start all Alpha nodes at the same time
If the process went well all Alpha nodes take a snapshot after 1 minute. You should see something similar to this in the Alpha logs:
I1227 13:27:53.959671   29781 draft.go:571] Creating snapshot at index: 34. ReadTs: 6.
Note that snapshot at index value must be the same within the same Alpha group and ReadTs must be the same value within and among all the Alpha groups.

​
Enterprise features

​
Multi-tenancy

By default, Bulk Loader preserves the namespace in the data and schema files. If there’s no namespace information available, it loads the data into the default namespace. Using the --force-namespace flag, you can load all the data into a specific namespace. In that case, the namespace information from the data and schema files are ignored. For example, to force the bulk data loading into namespace 123:
dgraph bulk -s /tmp/data/1million.schema -f /tmp/data/1million.rdf.gz --force-namespace 123

​
Encryption at rest

Even before the Dgraph cluster starts, we can load data using Bulk Loader with the encryption feature turned on. Later we can point the generated p directory to a new Alpha server. Here’s an example to run Bulk Loader with a key used to write encrypted data:
dgraph bulk --encryption key-file=./enc_key_file -f data.json.gz -s data.schema --map_shards=1 --reduce_shards=1 --http localhost:8000 --zero=localhost:5080
Alternatively, starting with v20.07.0, the vault_* options can be used to decrypt the encrypted export.

​
Encrypting imports

The Bulk Loader’s --encryption key-file=value option was previously used to encrypt the output p directory. This same option is also used to decrypt the encrypted export data and schema files. Another option, --encrypted, indicates whether the input rdf/json data and schema files are encrypted or not. With this switch, we support the use case of migrating data from unencrypted exports to encrypted import. So, with the preceding two options there are four cases:
  1. --encrypted=true and no encryption key-file=value. Error: if the input is encrypted, a key file must be provided.
  2. --encrypted=true and encryption key-file=path-to-key. Input is encrypted and output p dir is encrypted as well.
  3. --encrypted=false and no encryption key-file=value. Input isn’t encrypted and the output p dir is also not encrypted.
  4. --encrypted=false and encryption key-file=path-to-key. Input isn’t encrypted but the output is encrypted. (This is the migration use case mentioned previously).
Alternatively, starting with v20.07.0, the vault_* options can be used instead of the --encryption key-file=value option to achieve the same effect except that the keys are sitting in a Vault server. You can also use Bulk Loader, to turn off encryption. This generates a new unencrypted p that’s used by the Alpha process. In this, case you need to pass --encryption key-file, --encrypted and --encrypted_out flags.
# Encryption Key from the file path
dgraph bulk --files "<path-to-gzipped-RDF-or-JSON-file>" --schema "<path-to-schema>" --zero "<dgraph-zero-address:grpc_port>" \
  --encrypted="true" --encrypted_out="false" \
  --encryption key-file="<path-to-enc_key_file>"

# Encryption Key from HashiCorp Vault
dgraph bulk --files "<path-to-gzipped-RDF-or-JSON-file>" --schema "<path-to-schema>" --zero "<dgraph-zero-address:grpc_port>" \
  --encrypted="true" --encrypted_out="false" \
  --vault addr="http://localhost:8200";enc-field="enc_key";enc-format="raw";path="secret/data/dgraph/alpha";role-id-file="./role_id";secret-id-file="./secret_id"
In this case, we’re also passing the flag --encrypted=true as the exported data has been taken from an encrypted Dgraph cluster and we’re also specifying the flag --encrypted_out=false to specify that we want the p directory (that is generated by the Bulk Loader process) to be unencrypted.

​
Tuning & monitoring

​
Performance tuning

We highly recommend turning off swap space when running Bulk Loader. It is better to fix the parameters to decrease memory usage, than to have swapping grind the loader down to a halt.
Flags can be used to control the behavior and performance characteristics of the Bulk Loader. You can see the full list by running dgraph bulk --help. In particular, you should tune the flags so that Bulk Loader doesn’t use more memory than is available as RAM. If it starts swapping, it becomes incredibly slow. In the map phase, tweaking the following flags can reduce memory usage:
  • The --num_go_routines flag controls the number of worker threads. Lowering reduces memory consumption.
  • The --mapoutput_mb flag controls the size of the map output files. Lowering reduces memory consumption.
For bigger datasets and machines with many cores, gzip decoding can be a bottleneck during the map phase. Performance improvements can be obtained by first splitting the RDFs up into many .rdf.gz files (e.g. 256MB each). This has a negligible impact on memory usage. The reduce phase is less memory heavy than the map phase, although can still use a lot. Some flags may be increased to improve performance, but only if you have large amounts of RAM:
  • The --reduce_shards flag controls the number of resultant Dgraph Alpha instances. Increasing this increases memory consumption, but in exchange allows for higher CPU utilization.
  • The --map_shards flag controls the number of separate map output shards. Increasing this increases memory consumption but balances the resultant Dgraph Alpha instances more evenly.
